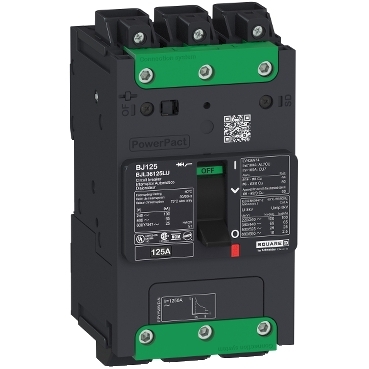

施耐德 Schneider PowerPact B Multistandard

Features

New smaller sized low voltage (LV) molded case circuit breakers (MCCB) for business without borders.

PowerPact B Multistandard molded case circuit breakers are equipped with a thermal-magnetic trip unit with a fixed tripping threshold. Designed to protect electrical systems from damage caused by overloads and short circuits.

Specifications

Rated current from 15 to 125 A
Three levels of breaking capacity: 18kA, 35 kA and 65 kA at 480 V
1, 2, 3, and 4-poles
Individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole
Over-center toggle mechanism providing quick-make, quick-break operation
Auxiliaries are externally visible
Built-in DIN rail and plate mount capability
Variety of operating mechanisms
Common accessories and auxiliaries with Compact NSXm
Can be used as an incomer
Ensures compliance with international standards: UL 489 and IEC 60947-2
Certifications: UL, CSA, NOM, IEC, CCC, and CE marked for global acceptance

For more information, download the PowerPact B Multistandard catalog

Benefits

PowerPact B molded case circuit breakers (MCCB) benefit from 60 years of expertise and leadership in industrial circuit breaker technology, in a new smaller frame size.

Global Design

One design for the world with standardized ratings and a full range of accessories make product selection, installation and maintenance easier
Reduce inventory with shared accessories and auxiliaries with Compact NSXm

Easy and Efficient

Flexible installation for your convenience: Click your circuit breaker into place with the built-in DIN rail - no extra parts required. Alternatively, vertical plate mounting means you can save space
EverLink^TM connectors for reliable and quick bare cable connections
Field-installable one-click auxiliaries and accessories
Wide range of online and offline software tools that help to improve productivity at all stages of your project (Ecoreal, Ecodial, MyPact)

Enhance Equipment Protection

All PowerPact Multistandard circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. This reduces the let-through currents and enhances equipment protection.

Click to watch the video and discover more about PowerPact B Multistandard molded case circuit breaker (MCCB)

Applications

Worldwide availability of the PowerPact B Multistandard makes these smaller sized molded case circuit breakers (MCCB) ideal for customers who have global designs or build and sell in UL markets.

For regional OEMs exporting to USA and other UL zones
International and global multi-site OEMs applications
Electrical distribution building applications for feeder or incomer protection and circuit disconnect solutions

Industrial control panels to serve as an incoming device, branch (feeder circuit) or can be combined with starts to protect motor feeders.

立即咨詢暫無

描述
參數
設備圖片

BDL16015

BDL16020

BDL16025

BDL16030

BDL16035

BDL16040

BDL16045

BDL16050

BDL16060

BDL16070

BDL16080

BDL16090

BDL16100

BDL16110

BDL16125

BDL26015LU

BDL26020LU

BDL26025LU

BDL26030LU

BDL26035LU

BDL26040LU

BDL26045LU

BDL26050LU

BDL26060LU

BDL26070LU

BDL26080LU

BDL26090LU

BDL26100LU

BDL26110LU

BDL26125LU

BDL36015LU

BDL36020LU

BDL36025LU

BDL36030LU

BDL36035LU

BDL36040LU

BDL36045LU

BDL36050LU

BDL36060LU

BDL36070LU

BDL36080LU

BDL36090LU

BDL36100LU

BDL36110LU

BDL36125LU

BDL46015LU

BDL46020LU

BDL46025LU

BDL46030LU

BDL46035LU

BDL46040LU

BDL46045LU

BDL46050LU

BDL46060LU

BDL46070LU

BDL46080LU

BDL46090LU

BDL46100LU

BDL46110LU

BDL46125LU

BDF16015

BDF16020

BDF16025

BDF16030

BDF16035

BDF16040

BDF16045

BDF16050

BDF16060

BDF16070

BDF16080

BDF16090

BDF16100

BDF16110

BDF16125

BDF26015

BDF26020

BDF26025

BDF26030

BDF26035

BDF26040

BDF26045

BDF26050

BDF26060

BDF26070

BDF26080

BDF26090

BDF26100

BDF26110

BDF26125

BDF36015

BDF36020

BDF36025

BDF36030

BDF36035

BDF36040

BDF36045

BDF36050

BDF36060

BDF36070

BDF36080

BDF36090

BDF36100

BDF36110

BDF36125

BDF46015

BDF46020

BDF46025

BDF46030

BDF46035

BDF46040

BDF46045

BDF46050

BDF46060

BDF46070

BDF46080

BDF46090

BDF46100

BDF46110

BDF46125

BGL16015

BGL16020

BGL16025

BGL16030

BGL16035

BGL16040

BGL16045

BGL16050

BGL16060

BGL16070

BGL16080

BGL16090

BGL16100

BGL16110

BGL16125

BGL26015LU

BGL26020LU

BGL26025LU

BGL26030LU

BGL26035LU

BGL26040LU

BGL26045LU

BGL26050LU

BGL26060LU

BGL26070LU

BGL26080LU

BGL26090LU

BGL26100LU

BGL26110LU

BGL26125LU

BGL36015LU

BGL36020LU

BGL36025LU

BGL36030LU

BGL36035LU

BGL36040LU

BGL36045LU

BGL36050LU

BGL36060LU

BGL36070LU

BGL36080LU

BGL36090LU

BGL36100LU

BGL36110LU

BGL36125LU

BGL46015LU

BGL46020LU

BGL46025LU

BGL46030LU

BGL46035LU

BGL46040LU

BGL46045LU

BGL46050LU

BGL46060LU

BGL46070LU

BGL46080LU

BGL46090LU

BGL46100LU

BGL46110LU

BGL46125LU

BGF16015

BGF16020

BGF16025

BGF16030

BGF16035

BGF16040

BGF16045

BGF16050

BGF16060

BGF16070

BGF16080

BGF16090

BGF16100

BGF16110

BGF16125

BGF26015

BGF26020

BGF26025

BGF26030

BGF26035

BGF26040

BGF26045

BGF26050

BGF26060

BGF26070

BGF26080

BGF26090

BGF26100

BGF26110

BGF26125

BGF36015

BGF36020

BGF36025

BGF36030

BGF36035

BGF36040

BGF36045

BGF36050

BGF36060

BGF36070

BGF36080

BGF36090

BGF36100

BGF36110

BGF36125

BGF46015

BGF46020

BGF46025

BGF46030

BGF46035

BGF46040

BGF46045

BGF46050

BGF46060

BGF46070

BGF46080

BGF46090

BGF46100

BGF46110

BGF46125

BJL16015

BJL16020

BJL16025

BJL16030

BJL16035

BJL16040

BJL16045

BJL16050

BJL16060

BJL16070

BJL16080

BJL16090

BJL16100

BJL16110

BJL16125

BJL26015LU

BJL26020LU

BJL26025LU

BJL26030LU

BJL26035LU

BJL26040LU

BJL26045LU

BJL26050LU

BJL26060LU

BJL26070LU

BJL26080LU

BJL26090LU

BJL26100LU

BJL26110LU

BJL26125LU

BJL36015LU

BJL36020LU

BJL36025LU

BJL36030LU

BJL36035LU

BJL36040LU

BJL36045LU

BJL36050LU

BJL36060LU

BJL36070LU

BJL36080LU

BJL36090LU

BJL36100LU

BJL36110LU

BJL36125LU

BJL46015LU

BJL46020LU

BJL46025LU

BJL46030LU

BJL46035LU

BJL46040LU

BJL46045LU

BJL46050LU

BJL46060LU

BJL46070LU

BJL46080LU

BJL46090LU

BJL46100LU

BJL46110LU

BJL46125LU

BJF16015

BJF16020

BJF16025

BJF16030

BJF16035

BJF16040

BJF16045

BJF16050

BJF16060

BJF16070

BJF16080

BJF16090

BJF16100

BJF16110

BJF16125

BJF26015

BJF26020

BJF26025

BJF26030

BJF26035

BJF26040

BJF26045

BJF26050

BJF26060

BJF26070

BJF26080

BJF26090

BJF26100

BJF26110

BJF26125

BJF36015

BJF36020

BJF36025

BJF36030

BJF36035

BJF36040

BJF36045

BJF36050

BJF36060

BJF36070

BJF36080

BJF36090

BJF36100

BJF36110

BJF36125

BJF46015

BJF46020

BJF46025

BJF46030

BJF46035

BJF46040

BJF46045

BJF46050

BJF46060

BJF46070

BJF46080

BJF46090

BJF46100

BJF46110

BJF46125
